The Structure from Motion Tool¶

SfM Tool is a command-line toolkit (sfm) and a desktop viewer (SfM Explorer) for building Structure from Motion reconstructions from photographs and inspecting them in 3D.

About this Project¶

The goal of this project is to make creating and exploring Structure from Motion (SfM) fun. I had a bunch of vacation datasets of interesting scenes sitting around, ready for photogrammetry and Gaussian splats, but using existing tools wasn't as fun as I imagined it could be. I also wanted a project for learning agentic AI coding tools with no expectations or restrictions. The result is this project, and I hope you enjoy it if you give it a try!

SfM Tool builds heavily on the work of others, especially COLMAP and OpenCV. Most of what's different is around the workflow you use to create SfM reconstructions.

The SfM Explorer GUI¶

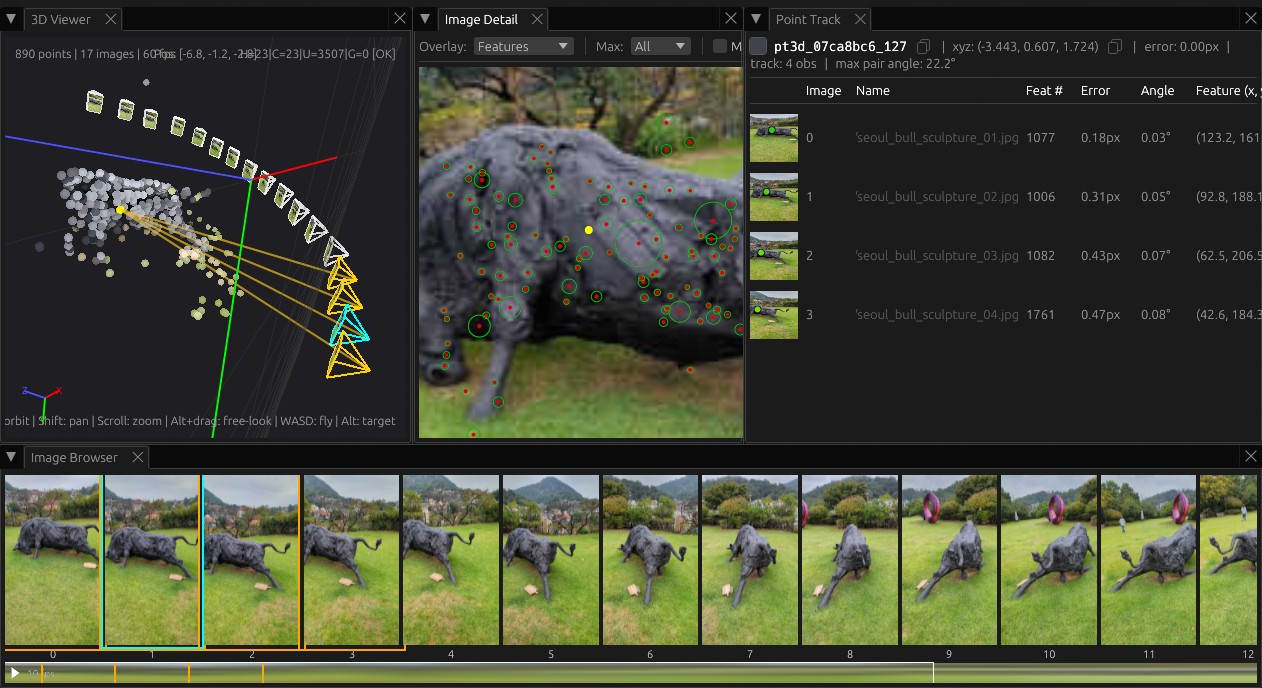

Once you have an .sfmr file, you can load it into the SfM Explorer GUI to view it in 3D with sfm explorer <file>.sfmr. In this screenshot, we've loaded the solution created by the below sfm solve command. By selecting a 3D point, we can view the track it comes from and visualize all the projected rays from the cameras.

The sfm CLI command¶

The CLI command sfm is the interface for creating and evaluating reconstructions. Every reconstruction must be performed within an SfM workspace. This opinionated approach makes it easier and more predictable to use the command, and means you don't need to repeat options redundantly while using it.

Here's the simplest way to create a workspace and perform an SfM reconstruction with a small image dataset.

# Create the workspace and an images directory inside of it
$ mkdir -p workspace/images

# Copy the images into the workspace
$ cp /path/to/images/*.jpg workspace/images/

# Enter the workspace
$ cd workspace

# Initialize the workspace
$ sfm ws init .
Initialized workspace: .../workspace
Configuration file: .../workspace/.sfm-workspace.json
  feature_tool: sfmtool
  contrast_threshold: 0.0067
  octave_layers: 3
  max_num_features: 8192

# Solve SfM for the specified images using the global GLOMAP solver
$ sfm solve -g images/
Running global SfM with GLOMAP...
Image files:
  .../workspace/images/seoul_bull_sculpture_%02d.jpg (17 files, sequence 1-17)
...
Saved reconstruction to: .../workspace/sfmr/20260404-00-solve-seoul_bull_sculpture_1-17.sfmr

Now you can use a variety of commands to inspect the reconstruction.

# Overview of the reconstruction
$ sfm inspect sfmr/20260404-00-solve-seoul_bull_sculpture_1-17.sfmr
...

# Per-image reprojection error metrics
$ sfm analyze --metrics sfmr/20260404-00-solve-seoul_bull_sculpture_1-17.sfmr
...

What is Structure from Motion?¶

In SfM, you start with a scene that is static and take photographs of the scene from multiple different poses. Importantly, the poses should be in different positions around the scene, not looking around from one position. Starting from just the photographs, the SfM solver estimates the structure of the scene and the motion of the camera at the same time. The structure is a set of 3D points on surfaces that are visible from more than one camera. The motion is each photo's camera position and orientation; the solver also estimates each camera's intrinsics, such as focal length and lens distortion.

Recent research is focused on ideas like using feedforward networks to go straight from images into 3D representations. This project is not about VGGT or similar techniques, but visualizing their output in SfM tool or using them as part of SfM would be interesting to explore.

Installation¶

pip install sfmtool

Wheels are published for Python 3.14 on x86-64 Linux, x86-64 Windows and Apple silicon macOS. Anywhere else, including Intel macOS, pip builds sfmtool from the source distribution, which needs a Rust toolchain at version 1.97 or newer.

See the getting started tutorial for a full walkthrough.

About Me¶

I'm Mark Wiebe, and I've long had a soft spot for everything to do with capturing, reconstructing, and rendering 3D. This is a personal project, all views are my own and do not reflect Amazon's views or positions. I work as a Principal Engineer at AWS on the Deadline Cloud web service that provides render farm/batch computing focused on rendering and related workloads. Other projects I've helped create include the conda package management system while building the Anaconda Distribution, introducing the EinSum function to NumPy, and I played a major role creating tools at Frantic Films and at Thinkbox Software (later acquired by AWS) such as Deadline, Flood, Krakatoa, XMesh, Frost, Sequoia and more.
